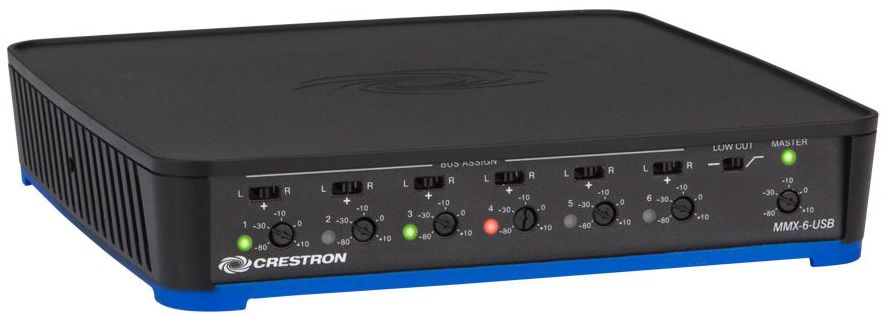

Crestron® 6-Channel USB Microphone Mixer

At a Glance

Crestron® 6-Channel USB Microphone Mixer with integrator friendly enclosure and balanced analog stereo line-level output

Proposition 65 Warning for California Residents

Provides a microphone mixer and preamp for Crestron RL® 2 and other applications. Includes analog and USB 2.0 outputs.

The MMX-6-USB is a compact and cost-efficient stereo microphone mixer, designed to allow up to six dynamic or condenser microphones to be connected to a Crestron RL® 2 system, CaptureLiveHD® system, or any other audio system. Its unique housing design allows for installation virtually anywhere, including under a table, on a wall, or in an equipment rack. Used with the Crestron RL 2 System Codec (CCS-UC-CODEC-200), the MMX-6-USB easily accommodates individual table microphones, as well as microphones with multiple elements like the Shure® MX396/C. It can also be used as a microphone preamp for devices like the Capture HD® High-Definition Capture Recorder (CAPTURE-HD), which does not have a mic preamp on board.

Professional Features

To ensure compatibility with a full range of microphone types, the MMX-6-USB features individually selectable 48 Volt phantom power on each of its six inputs. Each input offers a 90 dB adjustment range, with up to 60 dB of gain available. Any input may be assigned to either or both channels of the mixer’s stereo output. A low-cut filter is also provided at the output to reduce low-frequency rumble noise if required. Input and output indicators provide clear indication of signal presence and clipping for easy setup. All controls on the MMX-6-USB are screwdriver adjustable to prevent accidental changes to the settings once the unit is installed and set up.

USB and Analog Outputs

With both USB 2.0 and analog line-level outputs, the MMX-6-USB works with a wide range of devices and applications. Its USB output allows for direct connection to the Crestron RL 2 codec, as well as to a Mac® or Windows® PC. The balanced analog output allows for connection to a stereo or mono line-level input on any conventional audio device. The USB and analog outputs contain the same audio signal and may be used simultaneously.

Integrator Friendly Enclosure

The MMX-6-USB features the Crestron IFE form factor, a compact “Integrator Friendly Enclosure” design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple mixers and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to any flat surface or snapped onto a standard DIN rail. A rack mount kit is also available separately.

Key Features

Professional 6-channel stereo microphone mixer

USB 2.0 output

Balanced analog stereo line-level output

Individually selectable 48 Volt phantom power per input channel

Individually assignable output bus routing per input channel

Selectable 100 Hz low-cut output filter

Bi-color signal/clip LED indicator per input and master output

Screwdriver-adjustable controls

Compact, stackable “IFE medium” form factor

Surface or DIN rail mountable using bracket provided

Available rack mount option (sold separately)

External 100-240V universal power pack included
