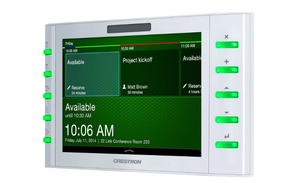

Crestron 7” Room Scheduling Touch Screen-White Smooth built-in proximity sensor
|Display Type||TFT Active matrix color LCD|
|Product Weight (lbs.)||1.14|
See Price in Cart
The TSW-732 Room Scheduling Touch Screen features a brilliant 7 inch (178 mm) widescreen display with lots of space for displaying essential meeting and scheduling information all at once without having to flip through multiple pages. Capacitive touch screen technology affords a nimble touch response for navigating the intuitive on-screen interface. Crestron Smart Graphics™ delivers a dynamic, gesture-driven user experience with many customizable features. Shortcut buttons on either side of the touch screen provide an alternate method for quickly accessing the most common scheduling functions.
With its clean, modern appearance, the TSW-732 makes an elegant statement in any environment including office buildings, conference centers, hotels, and universities. A choice of mounting options allows the TSW-732 to be installed in places other touch screens just can’t go. It can be installed on a wall over a standard 2-gang electrical box, placed on a table, or mounted to virtually any flat surface — even glass, granite, or marble. Its contoured shape affords clear visibility down long corridors, with room status indicators at either side that shine green when the room is available and red when it is in use.
The TSW-732 is optimized for use with Crestron Fusion RV software, enabling tight integration with popular scheduling applications like Microsoft® Exchange, Office 365™, IBM® Notes®, CollegeNET® R25®, and Google Calendar™. Through its color touch screen, the TSW-732 provides advanced room scheduling capabilities that can be customized to suit the needs of any organization.
Schedule View – Displays a clear, at-a-glance view of the current reservation along with upcoming reservations and available time slots on a scrolling calendar ribbon. New reservations can be scheduled on the spot.
Find – Allows you to quickly search all the rooms on the network and to reserve any room nearby, without leaving the touch screen you’re at.
Extend – Allows you to extend the current reservation if a meeting is running over and the room is still available.
Details – Provides additional information about a reservation.
Check In – Requires the meeting organizer to check in before a meeting to confirm the reservation. If no one checks in, the room can automatically become available to others.
Availability Threshold – Reserves extra setup time ahead of the actual scheduled event. Eliminates the need to schedule a separate reservation for setting up furniture, refreshments, staging, and AV before a meeting, luncheon, or other event.
Custom Backgrounds – Allows you to change the background images that appear on each touch screen. Company logos and other custom graphics can be uploaded to the Fusion RV server or any Web server, enabling the graphics to be changed at any time by simply uploading a new image file to the server.
Localization – Supports international fonts and formats in combination with Fusion RV software.
Broadcast Messaging – Allows text bulletins, announcements, and other messages to be displayed on the touch screen. Emergency broadcasts can be accompanied by an alert sound, while non-emergency messages are displayed on the screen without disrupting its normal use.
PIN Code Authorization – Allows a 4-digit PIN code to be used to restrict access to certain functions such as reserving a room through the touch screen, viewing a private reservation, viewing details, checking into a meeting, extending a reservation, ending a reservation early, or accessing the touch screen configuration page.
The TSW-732 comes standard with 10 “hard key” pushbuttons. Positioned on either side of the touch screen display, these buttons offer an alternative method for navigating the on-screen user interface, providing quick access to the most common scheduling functions. The buttons are also backlit, illuminating green or red to indicate when the room is available or in use.
The button backlighting is fully dimmable to allow for just the right brightness. For custom applications, each button can be individually programmed to provide discrete feedback. Attain customized button labeling using Crestron Engraver software. For a clean appearance, the buttons may be removed and covered using the no-button covers provided.
Crestron GLS-Series room occupancy sensors can be connected directly to the TSW-732 to detect when no one has shown up for a scheduled meeting. In such an event, the current reservation can be cancelled automatically to make the room available to others.
The TSW-732 senses your presence as you approach it. Its display wakes automatically without having to touch the screen.
Just like any other Crestron touch screen, the TSW-732 can be custom programmed for all types of applications. The TSW-732 uses Smart Graphics to deliver the ultimate user experience when controlling AV, lighting, shades, HVAC, and other functions. Additional enhancements include support for voice recognition, H.264 streaming video, Rava® SIP intercom, web browsing, and audio feedback.
The TSS-752 supports all of the languages available in Fusion RV. In addition to a primary language, this touch screen supports and optional secondary language. Setting a secondary language enables a custom button on the toolbar that toggles between the primary and secondary language when touched. While the unit will always boot up in the primary language, one touch of the custom button instantly switches the display to the secondary language, providing an optimal solution for dual-language environments.
A simple Ethernet LAN connection is all that is required to wire the TSW-732, containing all control, video, intercom, and power signals within a single wire.
Using PoE+ technology, the TSW-732 gets its operating power right through the LAN wiring. Power over Ethernet (PoE) eliminates the need for a local power supply or any dedicated power wiring. The TSW-732 requires a PoE+ power source for full functionality. LLDP advanced power management enables the TSW-732 to require only 16 Watts from the PoE power budget when powered by an LLDP compatible PoE+ switch such as the Crestron CEN-SWPOE-16 (see specifications for more information).
The TSW-732 easily installs on virtually any mounting surface. As standard, it mounts directly to a 2-gang electrical box or a 2-gang UK electrical box, requiring just 1/2-inch of mounting depth while protruding less than an inch from the wall surface. For impenetrable surfaces, such as decorative glass, granite, marble, plaster, smooth stone, and masonry, Crestron offers the Multi-Surface Mount Kit (TSW-730-MSMK), which provides a very versatile mounting solution complete with a low-profile rear shell enclosure, adhesive mounting plate, optional angle bracket, and wire raceway. And finally, the Table Top Kit (TSW-730-TTK) converts the TSW-732 into a stylish, compact, tabletop touch screen, perfect for free-standing use or for permanent mounting on a tabletop or counter surface.
Room scheduling touch screen
For use with Crestron Fusion RV® software
Intuitive on-screen scheduling interface
7" widescreen active-matrix color display
Capacitive touch screen technology
Smart Graphics™ support
Crestron Fusion® multi-language support with toggle function
Built-in proximity sensor
Room occupancy sensor option
Voice recognition capability
High-performance H.264 streaming video
Rava® SIP intercom and phone technology
Customizable audio feedback
Built-in microphone and speaker
10 optional "hard key" pushbuttons
Dual-color button backlighting
Custom engravable button text
Single-wire Ethernet connectivity
PoE+ network powered
Versatile wall, surface, and tabletop mounting options
Modern, contoured appearance
Available with black or white smooth finish
|Product Weight (lbs.)||1.14|
|Display Type:||TFT Active matrix color LCD|
