Crestron® 8 Channel 0-10V Dimmer Module

Model #: CLXI-2DIMFLV8

At a Glance

Crestron® 8 Channel 0-10V Dimmer Module with override preset capability and built-in air gap relay

WarningProposition 65 Warning for California Residents
Crestron® 8 Channel 0-10V Dimmer Module

Features

DimmableYes

General Specs

Product Weight (lbs.)3.15
Width (in.)6.7
Depth (in.)3.32
Height (in.)6.92

Crestron® 8 Channel 0-10V Dimmer Module

Model #: CLXI-2DIMFLV8
172567
Model #: CLXI-2DIMFLV8
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® 8 Channel 0-10V Dimmer Module with override preset capability and built-in air gap relay

Get to know this product.

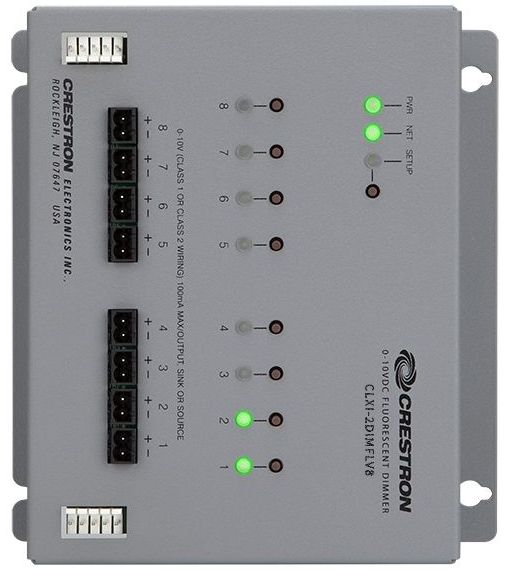

The CLXI-2DIMFLV8 provides 8 channels of 0-10 Volt dimming control for fluorescent ballasts and LED drivers.Module shown with CLTI-Series Terminal block on left.As part of a complete Crestron® lighting system, the CLXI-2DIMFLV8 lighting control module provides 8 channels of 0-10 Volt dimming control for fluorescent ballasts and LED drivers. The CLXI-2DIMFLV8 is actually composed of two independent 4-channel dimmers in a single module. Each channel is rated for 20 Amps, with a total module rating of 40 Amps when fed from two separate 20 Amp feeds. Air-gap relays are provided on every channel output, allowing individual circuits to be serviced without disabling the entire module.CLXI Series dimmers are rigorously built for ultimate reliability. Split-bobbin transformers and ground referenced electronics deliver superior performance. Lamp flicker is minimized through Crestron's innovative zero-crossing detection technique backed by proprietary firmware. Low-maintenance convection cooling assures quiet and trouble-free operation.An override feature allows each channel to be adjusted to a preset state during setup. In the event that Cresnet® communications should be disrupted for any reason, a simple contact closure can be used to activate the override presets on a global or semi-global basis.The CLXI-2DIMFLV8 occupies a single module space in any CAEN or CAENIB automation enclosure. Termination of high-voltage wiring to the module is facilitated by a CLTI-2DIMFLV8 terminal block, sold separately to enable termination of the wiring any time prior to installing the module. CLXI modules are controlled by the CLX-DIN-AP3 or other 3-Series® control system via the Cresnet network. A 5-wire link provides bussing of the Cresnet and override signals between modules within an enclosure (interconnect jumpers included).

Key Features

    8 channels of 0-10 Volt dimming control for fluorescent ballasts and LED drivers

    Two independent 4-channel dimmers in a single module

    Dual or single 230 Volt feed

    Arcless switching

    Air-gap relays on every channel output

    Override preset capability

    Convection cooled

    Occupies 1 module space in a CAEN or CAENIB automation enclosure

    Easy termination using CLTI Series terminal block

    CEC Title 24 2013 Compliant

Specifications

General Specs

Product Weight (lbs.)3.15
Width (in.)6.7
Depth (in.)3.32
Height (in.)6.92

Features

DimmableYes
