Crestron® 8-Channel 4K HDMI® Input Blade

At a Glance

Crestron® 8-Channel 4K HDMI® Input Blade for DM® switchers with modular plug-in input card slots

Proposition 65 Warning for California Residents

Provides one multi-format analog video input for any DigitalMedia™ Switcher with modular plug-in input card slots.

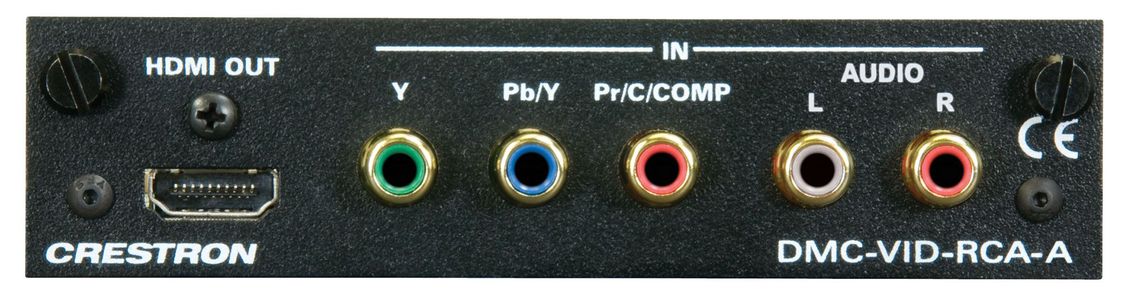

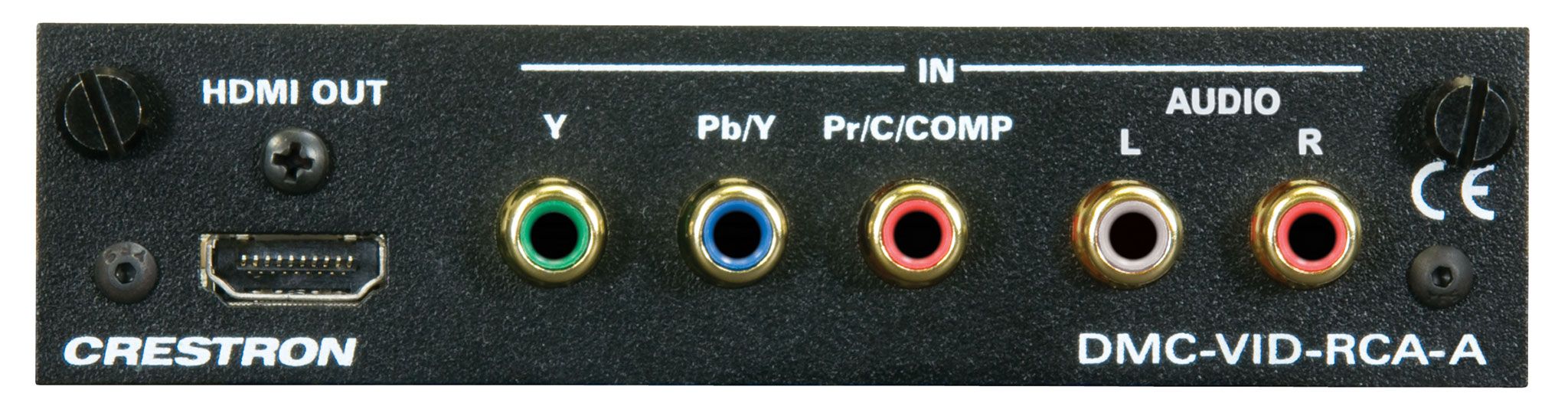

The DMC-VID-RCA-A is an input card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides one multi-format analog video input and one stereo analog audio input, with a complementary HDMI® pass-through output. The video input allows for the connection of component, S-Video, and composite video sources. It handles 480i NTSC and 576i PAL signals, as well as HD signals up to 1080p60.

Digital AV Converter

Using high-quality 30 bit sampling, the DMC-VID-RCA-A converts analog video signals to digital for distribution over the DigitalMedia network. Analog audio signals are converted to 24 bit digital.

HDMI® Pass-Through

Every DM® switcher input card includes an HDMI output port, which can be used to pass the audio and video input signals through to a local audio processor or video monitor, or to feed a second DM switcher for output expansion purposes.

Multi-format Analog AV to HDMI Converter

In addition to its use as an input card for DM switchers, the DMC-VID-RCA-A may also be used with the DMCI DigitalMedia Card Interface to serve as an analog AV to HDMI signal convertor, and to detect and report input signal information to a Crestron control system.

To configure a DM switcher complete with input and output cards, cables, and other peripherals, please use the online DigitalMedia Switcher Configuration Tool.

Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.

Key Features

Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher

Provides a multi-format analog video input with stereo analog audio

Accommodates component, S-Video, and composite video sources

Handles 480i NTSC and 576i PAL signals

Handles HD video resolutions up to Full HD 1080p

Converts analog AV signals to digital

Employs high-quality 30 bit video and 24 bit audio sampling

Includes an HDMI® output for pass-through of the input signal

Occupies a single DM® switcher input card slot

Provides an analog AV to HDMI convertor using the optional DMCI card interface
