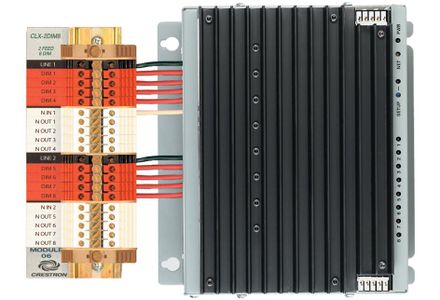

Crestron® 8 Channel Dimmer Module with terminal block and 2 feeds
|Product Weight (lbs.)||4.5|
See Price in Cart
Provides eight channels of dimming for commercial lighting applications. Supports incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire dimmable fluorescent lighting loads. Installs in a CAEN or CAEN-MLO wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.
The Crestron® GL-CAEN-2DIM8 is an eight-channel, two-feed dimmer module designed for 120V commercial lighting system applications. It installs in a CAEN or CAEN-MLO enclosure and provides control of a variety of dimmable lighting load types including incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire fluorescent. Dual feed capability provides two independent four-channel dimmers in one module space. Each output channel is rated for 1920 Watts (16 Amps), with a total module rating of 3840 Watts (32 Amps) when fed from two separate 20 Amp feeds.
The GL-CAEN-2DIM8 employs forward phase (leading edge) dimming to handle inductive load types like magnetic low-voltage and neon, as well as incandescent and 2-wire fluorescent.
An air-gap relay on each channel output allows individual circuits to be serviced without disabling the entire module.
Low-maintenance convection cooling with over-sized heatsinks affords silent operation with no mechanical components to wear out.
The GL-CAEN-2DIM8 is UL® 924 and CSA® C22.2 No. 141-15 listed for use in controlling emergency lighting loads. In the event of a power failure, a contact closure from a power loss sensor (Crestron GLS-PLS-120/277, sold separately) activates the override mode in the GL-CAEN-2DIM8 to turn on each designated lighting load if it is off (assuming line power is supplied by a backup power source). The override dimming level can be preset to any value when commissioning the lighting system, so even if the load is already on prior to a power failure, it will change to the preset level when override mode is activated.
Crestron GL-CAEN series commercial lighting control modules are designed to be installed in a CAEN or CAEN-MLO wall mount enclosure. Available in a variety of sizes, CAEN and CAEN-MLO enclosures provide a scalable, high-density centralized lighting control solution for any-sized commercial building or facility. A selection of GL-CAEN module types is offered to accommodate a wide range of load types and system configurations.
Each lighting control module, including the GL-CAEN-2DIM8, ships complete with a DIN rail terminal block for termination of the high-voltage feed and load wiring. This terminal block mounts beside the module within the enclosure. Low-voltage control signals are bussed between each of the modules within an enclosure via a simple 5-wire link (interconnect jumpers included), which terminates to a single terminal block (model CAEN-BLOCK, sold separately) at the bottom of the enclosure.
The GL-CAEN-2DIM8 interfaces with a Crestron control system (a.k.a., control processor or automation processor) via Cresnet. Cresnet is a simple 4-wire network bus that provides the communications backbone for a system of Crestron lighting dimmers, switches, keypads, shades, thermostats, and other devices.
Eight-channel dimmer module for commercial lighting applications
Installs in a Crestron® CAEN or CAEN-MLO enclosure
Supports dimmable incandescent, magnetic low-voltage, neon/cold cathode, and 2-wire fluorescent lighting loads
Single or dual feeds — two four-channel dimmers in one module
Rated 16 Amps per channel, 32 Amps total (using two 20 Amp feeds), at 120 Volts AC
Forward phase dimming
Customizable dimming curves via software
Built-in air gap relay per channel
Convection cooled for silent operation
Closure-activated override mode
UL® 924 and CSA® C22.2 No. 141-15 listed for emergency lighting control
Crestron system integration via Cresnet®
Includes terminal block for high-voltage wiring
CEC Title 24 2013 compliant
