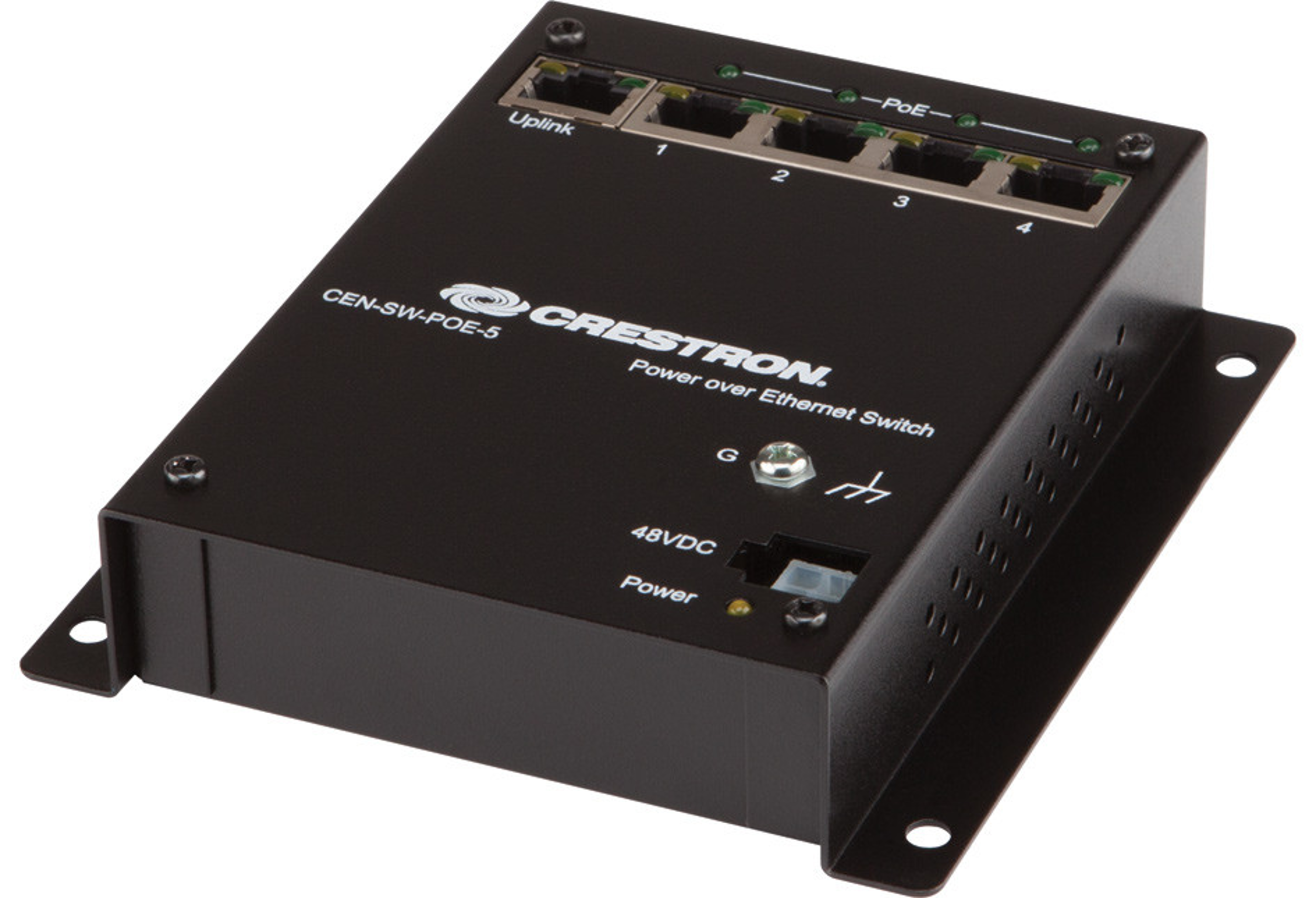

Crestron® CEN-SW-POE-5 5-Port PoE Switch

A surface-mountable 5-port Gigabit Ethernet switch with PoE on four ports.

The CEN-SW-POE-5 is a 5-port unmanaged Gigabit Ethernet switch that provides Power over Ethernet (PoE) from four of its ports. Power over Ethernet affords a one-wire solution for connecting Crestron touch screens, gateways, and other devices, delivering power and data over a single CAT5/6 network cable. All 5 ports are Gigabit capable to ensure maximum bandwidth for multimedia and critical control data.

Using the CEN-SW-POE-5, there is no need to install a separate power supply at each networked device location. The CEN-SW-POE-5 can simply be mounted at a convenient location on a wall or in an equipment rack, providing a single power source for four separate 802.3af compliant PoE powered devices. Non-PoE devices may also be connected to any port on the CEN-SW-POE-5 without risk of damage to either component.

Key Features

• 5-port unmanaged Ethernet switch
• All ports support 1000Base-T Gigabit Ethernet
• Provides PoE (802.3af) on 4 ports
• Auto-negotiating and auto MDI/MDIX
• Rugged metal enclosure
• Surface or rack-rail mountable
• Ethernet
• Ports: (5) 10Base-T/100Base-TX/1000Base-T Ethernet
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, & 802.3af
• Transmission Method: Store-and-Forward

Indicators

• PoE 1 – 4: (4) green LEDs, indicate a PoE powered device is connected to each corresponding Ethernet port
• Uplink: (1) green LED and (1) amber LED; indicate Ethernet link status, speed, and activity at the Uplink port
• 1 – 4: (1) green LED and (1) amber LED per each of (4) Ethernet ports; indicate Ethernet link status, speed, and activity at each corresponding port
• Power: (1) yellow LED, indicates operating power supplied via external power pack

Connectors

• Uplink: (1) 8-wire RJ45, female;
• 10Base-T/100Base-TX/1000Base-T Ethernet port
• 1 – 4: (4) 8-wire RJ45, female;
• 10Base-T/100Base-TX/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs
• G: (1) 6-32 screw, chassis ground lug
• 48VDC: (1) 4-pin (2x2) rectangular connector;
• 48 Volt DC power input (power pack included)

Power Requirements

• Power Pack: 1.25 Amps @ 48 Volts DC;
• 100-240 Volts AC 50/60 Hz power pack included

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Heat Dissipation: 10 BTU/hour

Enclosure

• Chassis: Metal, black finish, with (2) integral mounting flanges, vented top and bottom
• Mounting: Freestanding, surface mount, or attach to a single rack rail
• Dimensions
• Height: 5.06 in (129 mm)
• Width: 4.66 in (119 mm)
• Depth: 1.17 in (30 mm)
• Weight:13.5 oz (381 g)
