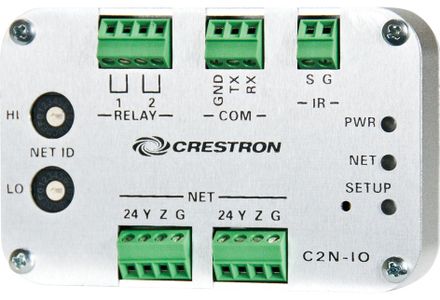

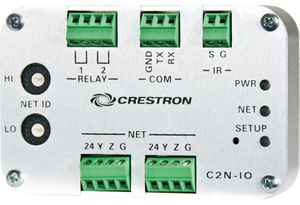

Crestron® Control Port Expansion Module

Model #: C2N-IO

At a Glance

Crestron® Control Port Expansion Module with a 2-gang wall box and interfaces via the Cresnet® control bus

WarningProposition 65 Warning for California Residents
Crestron® Control Port Expansion Module

Connections

Connector TypeTerminal Blocks

General Specs

Depth (in.)0.83
Width (in.)3.5
Height (in.)2.25
Product Weight (lbs.)0.17

Crestron® Control Port Expansion Module

Model #: C2N-IO
165750
Model #: C2N-IO
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® Control Port Expansion Module with a 2-gang wall box and interfaces via the Cresnet® control bus

Get to know this product.

An outboard module for adding control ports to a Crestron® touch screen control system or any other Crestron control systems.

The C2N-IO is a very compact device that adds control ports to any Crestron® 2-Series or 3-Series® control system. It connects via the Cresnet® control network and provides one RS-232, one IR, and two relay control ports. It can be mounted to any flat surface using two screws or adhesive reclosable fastener (3M® Dual Lock® included).The C2N-IO is ideally designed for use with a Crestron touch screen control system ( TPCS-4SM, TPCS-4SMD, or TSCW-730), providing an advanced wall mount control package that fits in a 2-gang US or UK electrical box. The C2N-IO can be mounted inside the electrical box behind the touch screen, or it can be installed remotely requiring just one Cresnet control cable for power and communications.

Key Features

    Fits within a 2-gang wall box behind the TPCS-4SM(D) or TSCW-730

    Provides 1 RS-232, 1 IR/serial, and 2 relay ports

    Compatible with any Crestron® 2-Series or 3-Series® control system

    Interfaces via the Cresnet® control bus

    24 Volt DC Cresnet powered

    Surface mount bracket included

Specifications

General Specs

Depth (in.)0.83
Width (in.)3.5
Height (in.)2.25
Product Weight (lbs.)0.17

Connections

Connector Type:Terminal Blocks
