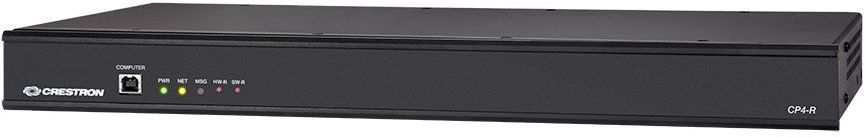

Crestron® CP4-R 4-Series Control System for Crestron Home™ OS

Product Overview

Provides a secure, high-performance, rack-mountable control processor and interface for use with Crestron Home™ OS. Includes a full complement of onboard control ports to handle larger home automation, home theater, multiroom video, and MDU (multidwelling unit) applications. 4-Series multicore CPU processor delivers remarkable speed and performance.

The 4-Series Control Processor for Crestron Home™ OS (CP4-R) provides a secure, high-performance, rack-mountable control processor with the embedded Crestron Home operating system. It is designed exclusively to function as the core of a Crestron Home system, and features enhanced processing power to handle larger home automation, home theater, multiroom video, and MDU (multidwelling unit) applications. The CP4-R comes equipped with a 4-Series multicore CPU processor that delivers remarkable speed and performance while handling the demands of an advanced automated system.

Through a full complement of onboard control ports, the CP4-R allows Crestron Home to integrate with a wide variety of audio, video, lighting, motorized shades, thermostats, door locks, sensors, and other equipment. Integration with a security system is supported using the optional COM Port Expander (PYNG-CONNECT-COM, sold separately).

Crestron Home unlocks the full potential of a smart home. It provides dealers with the ability to deliver a simple and clean user interface that includes sophisticated page designs; fluid dynamic room controls and icons; and new features including support for multiple homes, favorites, custom access, room image customizations, and more. The CP4-R can be upgraded from Crestron Pyng® OS 2 to Crestron Home OS via a firmware upgrade.

Advanced 4-Series control processor designed exclusively for Crestron Home™ OS 3

4-Series multicore CPU processor delivers remarkable speed and performance

Enhanced performance to handle larger home automation, home theater, multiroom video, and MDU applications

Communicates with the Crestron Home App for system configuration and control

Integrates control and monitoring of audio, video, lighting, shades, thermostats, door locks, sensors, and other devices

Includes built-in IR, COM, I/O, relay, Cresnet® network, and high-speed gigabit Ethernet control ports

Supports infiNET EX® network wireless devices via an optional external wireless gateway

Native BACnet™ network/IP support

Enterprise-class network security

Single-space 19 in. rack mountable

External 100–240 V power pack included
