Crestron® DIN Rail 0-10V Dimmer Module

At a Glance

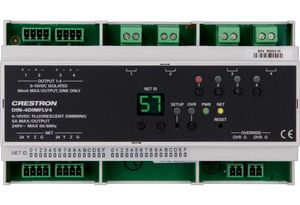

Crestron® DIN Rail 0-10V Dimmer Module with 4 feeds and 4 channels

Proposition 65 Warning for California Residents

4 channels of 0-10 Volt dimming control

Supports 120 and 220 to 240 Volt, 50/60 Hz applications

Allows switching of lighting and exhaust fans

Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.

The DIN-4DIMFLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-4DIMFLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps and 1/2 HP motors.

Override Input

An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.

DIN Rail Installation

The DIN-4DIMFLV4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-4DIMFLV4's front panel stays accessible while the connections are concealed.

Cresnet®

The DIN-4DIMFLV4 communicates with Crestron® control systems such as the DIN-AP2 or DIN-AP3 Automation Processors via the Cresnet control network. Use one of the unit’s two Cresnet ports to daisy-chain several DIN Rail Series automation control modules.

Key Features

Provides 4 channels of 0-10 Volt dimming control

Supports 120 and 220 to 240 Volt, 50/60 Hz applications

Allows switching of lighting and exhaust fans

Includes an override input

Communicates using Cresnet®

Sets up via the front panel or through software

Offers programmable functionality via DIN-AP2 or DIN-AP3

Mounts on a 9M wide DIN rail

CEC Title 24 2013 Compliant
