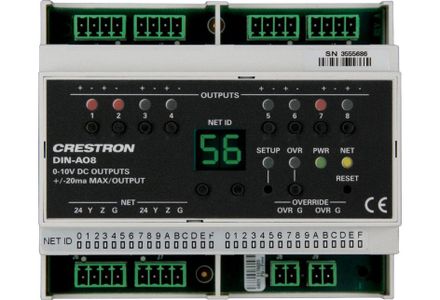

Crestron® DIN Rail Analog Output Module

Model #: DIN-AO8

At a Glance

Crestron® DIN Rail Analog Output Module with override input and eight 0-10V analog output control ports

WarningProposition 65 Warning for California Residents
Crestron® DIN Rail Analog Output Module

Connections

Connector TypeTerminal Blocks

General Specs

Product Weight (lbs.)0.4
Depth (in.)2.35
Height (in.)3.71

Crestron® DIN Rail Analog Output Module

Model #: DIN-AO8
166289
Crestron

See Price in Cart

At a Glance

Crestron® DIN Rail Analog Output Module with override input and eight 0-10V analog output control ports

Get to know this product.

    Eight 0-10V analog output control ports

    Interface for 3rd-party lighting and heating/cooling

    Fully programmable functionality via DIN-AP2

The DIN-AO8 is a DIN rail-mounted automation control module that provides eight analog output ports for interfacing with third-party lighting and heating/cooling systems.

Analog Outputs

    Each analog output port provides a 0 to 10 Volt DC control signal ideally suited for controlling 0-10V lighting dimmers and heating/cooling valves. Ten-bit resolution ensures precise recall of lighting and climate control settings and smooth ramping between levels.

Override Input

    An override input is provided to allow an external contact closure to momentarily override the control system program and set each output to its override preset level. Levels can be adjusted and saved locally from the front panel, or remotely via software.

DIN Rail Installation

    The DIN-AO8 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure or mounted on a wall panel. Wiring connections are made using detachable screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-AO8's front panel stays accessible while the connections are concealed.

Cresnet®

    The DIN-AO8 communicates with a DIN-AP2 2-Series Automation Processor, or other Crestron 2-Series control system, via the Cresnet control network. Cresnet also powers the DIN-AO8. A pair of Cresnet ports is provided on the DIN-AO8 allowing for easy daisy-chaining of several DIN Rail Series automation control modules.

Key Features

    Eight 0-10V analog output control ports

    Interface for 3rd-party lighting and heating/cooling

    Fully programmable functionality via DIN-AP2

    Setup via front panel or software

    Override input

    Cresnet communications

    6M wide DIN rail mounting

Specifications

General Specs

Product Weight (lbs.)0.4
Depth (in.)2.35
Height (in.)3.71

Connections

Connector Type:Terminal Blocks
