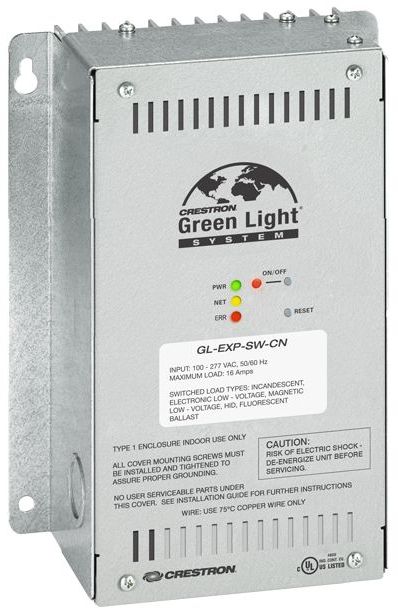

Crestron® Green Light® Switching Expansion Module

Model #: GL-EXP-SW-CN

At a Glance

Crestron® Green Light® Switching Expansion Module with emergency lighting control and a built-in gap relay

WarningProposition 65 Warning for California Residents
Crestron® Green Light® Switching Expansion Module

Construction

Mounting TypeSurface Mount

General Specs

Product Weight (lbs.)3.43
Width (in.)6.39
Depth (in.)3.16
Height (in.)8.78

Crestron® Green Light® Switching Expansion Module

Model #: GL-EXP-SW-CN
172408
Crestron

Call for Best Price

At a Glance

Crestron® Green Light® Switching Expansion Module with emergency lighting control and a built-in gap relay

Get to know this product.

A single-channel switch module controlled by Cresnet®. Supports on/off switching of a non-dimmable lighting or motor load. UL® 924 listed for emergency lighting control applications.The Crestron Green Light® GL-EXP Series delivers a family of professional lighting control modules for Cresnet® or DALI® based lighting systems. Designed for easy installation on a wall or above a suspended ceiling, these modules offer a perfect solution for adding extra lighting zones to any system without requiring an additional lighting cabinet.The GL-EXP-SW-CN is a single-channel switch expansion module designed to control a wide range of non-dimmable lighting loads including LED, incandescent, fluorescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, and high-intensity discharge. It can also be used to switch motor loads.

Cresnet® Communications

    The GL-EXP-SW-CN interfaces with a Crestron® control system via Cresnet. Cresnet is a simple 4-wire network bus that provides the communications backbone for a system of Crestron lighting dimmers, switches, keypads, shades, thermostats, and other devices.

Emergency Lighting Control

    The GL-EXP-SW-CN is UL® 924 listed for use in controlling an emergency lighting load. In the event of a power failure, a contact closure from a power loss sensor (Crestron GLS-PLS-120/277, sold separately) activates the override mode in the GL-EXP-SW-CN to turn on the lighting load if it is off (assuming line power is supplied by a backup power source).

Plenum Rated NEMA Enclosure

    The GL-EXP-SW-CN is designed to be mounted to a vertical surface and is UL 2043 compliant to allow for installation in an environmental air-handling space above a suspended ceiling. Conduit knockouts are provided on the bottom and lower sides of the unit. All connections are made via screw terminals behind the front cover.

Key Features

    Single-channel lighting switch

    Crestron® system integration via Cresnet®

    Supports on/off switching of LED, incandescent, fluorescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, and high-intensity discharge lighting loads

    Also supports on/off switching of motor loads

    Rated 16 Amps at 100-277 Volts AC

    Built-in air gap relay

    Closure-activated override mode

    UL® 924 listed for emergency lighting control

    Surface mountable NEMA Type 1 enclosure

    Mounts on a wall panel or above a suspended ceiling

    UL 2043 listed for installation in an environmental air handling space

Specifications

General Specs

Product Weight (lbs.)3.43
Width (in.)6.39
Depth (in.)3.16
Height (in.)8.78

Construction

Mounting Type:Surface Mount
