Crestron® HDMI® 4K60 4:4:4 HDR Input Card with downmixing for DM® Switchers
|Product Weight (lbs.)||0.5|
|Connector Type||HDMI Out; HDMI In; USB HIB; RCA Audio Out|
See Price in Cart
Provides a single HDMI® input for any DigitalMedia™ Switcher with modular input card slots. Supports 4K60 4:4:4 and HDR video sources. Includes stereo downmixing of multichannel input signals to enable simultaneous distribution of multichannel and 2-channel audio.

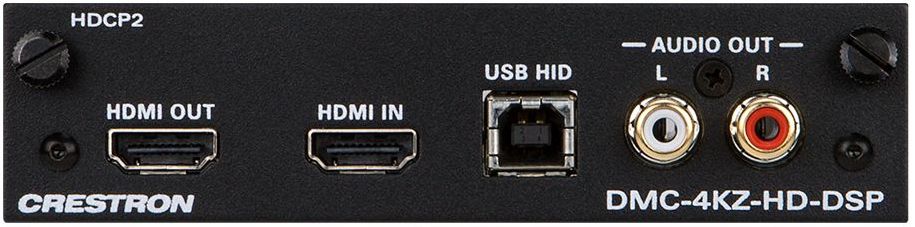

The DMC-4KZ-HD-DSP is an input card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides one HDMI® input, with complementary HDMI pass-through and analog audio outputs. A USB HID port is also provided. The HDMI input handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, 3D, and high-bitrate 7.1 audio. The HDMI input can also handle DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.The DMC-4KZ-HD-DSP provides all of the features of the DMC-4KZ-HD with the addition of downmixing to enable the simultaneous distribution of multichannel 7.1 surround sound and 2-channel stereo signals. It is recommended for use with surround sound sources to allow the original multichannel signal to be distributed to rooms with surround sound systems, while simultaneously distributing a 2-channel downmix signal to stereo-only rooms and devices.
Crestron DigitalMedia (DM) was the world’s first AV signal distribution solution to deliver end-to-end 4K signal management for large-scale commercial and residential applications. DM “4KZ” cards and endpoints enable new and existing DM systems to handle full 4K60 4:4:4 video signals, as well as HDR video signals (HDR10), without having to replace any wiring or switchers. Any Crestron DM system that supports 4K can be upgraded to handle 4K60 4:4:4 and HDR by simply installing DM 4KZ based cards, transmitters, and receivers. The DMC-4KZ-HD-DSP is designed to replace an existing DMC-4K-HD-DSP or DMC-4K-HD-DSP-HDCP2 input card without requiring any extra configuration or programming.
DM 4KZ technology employs VESA® Display Stream Compression (DSC) to enhance the capabilities of DigitalMedia to handle the extreme bandwidth requirement of resolutions beyond 4K30 4:4:4 and 4K60 4:2:0. DSC is a lightweight, line-based 2:1 compression standard that delivers visually lossless performance for 4K60 4:4:4 and HDR signals. DSC is applied only to 4K60 4:4:4 and HDR input signals. All other signals are transported uncompressed.
Every DM switcher input card includes an HDMI output port, which can be used to pass the input signal through to a local audio processor or video monitor, or to feed a second DM switcher for output expansion purposes.
The DMC-4KZ-HD-DSP includes an unbalanced analog audio output, allowing stereo audio signals to be extracted from the digital input and fed to a multiroom audio distribution system. Built-in DSP allows multichannel surround sound signals to be decoded and downmixed to stereo. The stereo downmix signal is automatically routed to the analog output, and can also be routed via any switcher output for distribution to stereo-only displays and other equipment. The analog output includes volume control that is adjustable via a control system using a keypad, touch screen, handheld remote, or mobile device.
Built-in USB HID signal routing allows a connected computer (or other USB HID-compliant host) to be controlled by a mouse and/or keyboard located at a presentation lectern, conference table, or some other remote location. Additional USB devices of virtually any type can be supported using Crestron USB over Ethernet Extender Modules (USB-EXT-DM-LOCAL and USB-EXT-DM-REMOTE).
For controlling third-party AV devices, DigitalMedia offers an alternative to conventional IR, RS-232, and Ethernet by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to a Crestron control system (via the DM switcher), the DMC-4KZ-HD-DSP provides a gateway for controlling the connected source device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.
In addition to its use as an input card for DM switchers, the DMC-4KZ-HD-DSP may also be used with the DMCI DigitalMedia Card Interface  to provide a handy problem-solving tool with many useful functions. It can be used to extract an analog audio signal from an HDMI stream, to downmix surround sound signals to stereo, to provide a gateway for CEC device control, and to extend a USB HID mouse/keyboard signal over Ethernet. It can also be used to detect a device’s video and audio information, manage its EDID, and assess its HDCP capabilities.
To configure a DM switcher complete with input and output cards, cables, and other peripherals, please use the online DigitalMedia Switcher Configuration Tool.
Please refer to the DigitalMedia webpage at https://www.crestron.com/digitalmedia for additional design tools and reference documents.
Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
Provides a single 4K HDMI® input
Handles UHD and 4K video resolutions up to 4K60 4:4:4
Handles HDR (High Dynamic Range) video (HDR10)
Handles 3D video and Deep Color
Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
HDCP 2.2 compliant
Includes an HDMI output for pass-through of the input signal
Includes a stereo analog line-level audio output with volume control
Allows de-embedding of stereo 2-channel audio signals
Built-in downmixing enables simultaneous distribution of multichannel surround sound and 2-channel stereo audio signals
Provides up to 120 ms delay adjustment of the downmix signal
Enables device control via CEC
Enables USB HID signal extension for a local computer
Compatible with Crestron USB over Ethernet Extenders
Occupies a single DM® switcher input card slot
Provides an HDMI problem solving solution using the optional DMCI card interface
|Product Weight (lbs.)||0.5|
|Connector Type:||HDMI Out; HDMI In; USB HIB; RCA Audio Out|
