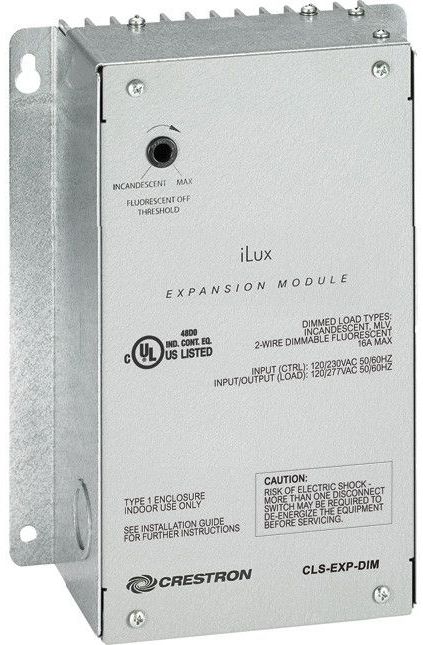

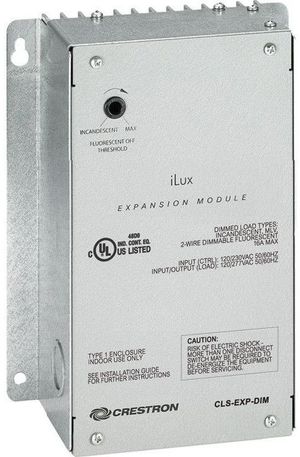

Crestron® iLux® Dimmer Expansion Module

The CLS-EXP-DIM enables the expansion of Crestron iLux® Integrated Lighting System (CLS-C6 series) and other Crestron® lighting dimmers to support 120, 230, or 277 Volt loads up to 16 Amps. It allows any output channel of the iLux system to dim a fully loaded circuit of LED, incandescent, magnetic low-voltage, neon/cold cathode, or 2-wire dimmable fluorescent lighting loads. It is also compatible with CLW-Series in-wall dimmers and select CLX-Series lighting control modules.The CLS-EXP-DIM is designed for mounting to a vertical surface, and can be installed in an environmental air-handling space above a suspended ceiling. Conduit knockouts are provided on the bottom and lower sides. All connections are made via screw terminals behind the front cover.

Key Features

• Works with Crestron iLux®, CLW, DIN, and CLX series dimmers
• Emulates the characteristics of the dimmer that is controlling it
• Up to 5 Expansion Modules can be connected to a single iLux dimmer channel
• Supports 120, 230, and 277 Volt LED, incandescent, NCC, MLV, and 2-wire dimmable fluorescent loads
• Includes threshold adjustment for setting minimum fluorescent dimming level
• Built-in air gap relay at the output
• Mounts to a wall or above a suspended ceiling
• CEC Title 24 2013 Compliant
