Crestron® In-Wall Switch-White

At a Glance

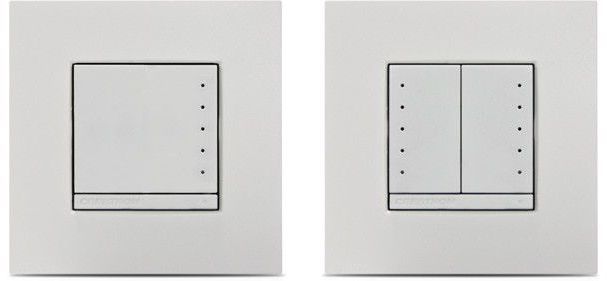

Crestron® In-Wall Switch-White with configurations up to 6 buttons and screw-clamp connectors

Proposition 65 Warning for California Residents

The CLWI-SWEX delivers native Crestron® control to any light or other switched load in new or retrofit 230 Volt applications. It features engravable and field customizable buttons and wireless infiNET EX® communications.

The CLWI-SWEX delivers native Crestron® control to any light or other switched load in new or retrofit 230 Volt applications. Featuring reliable infiNET EX® wireless technology, the CLWI-SWEX can be installed in virtually any location thanks to reliable mesh networking. Support for up to 2 Amp loads makes this switch perfect for most applications.

Field-Replaceable and Engravable Buttons

The CLWI-SWEX features engravable buttons that can be swapped out in the field. Change of room décor or functionality is easy to handle long after the dimmer or switch has been installed. Positive snap-on fittings require no tools for installation. Configure the dimmer or switch with a large rocker or any combination of up to two adjacent half-size rockers or triple-button pad. Each CLWI-SWEX ships with a full assortment of blank buttons as well.

Integrated Keypad

Because the CLWI-SWEX is attached to the Crestron network, it can also function as a keypad, sending commands to trigger whole-room lighting scenes or distributed audio functions. Supporting up to six buttons, the in-wall dimmer or switch serves as a great user-control interface in any Crestron system. Its single-box form factor maximizes control capability in a small space while increasing the opportunity for Crestron control in every room. Also available are aesthetically matched standalone keypads that use Cresnet® or infiNET EX® communications.

infiNET EX

Ultra-reliable infiNET EX wireless technology provides steadfast 2-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption.

The CLWI-SWEX communicates with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-GWEXER, DIN-AP3MEX, or MC3). Up to 100 infiNET EX devices may coexist on a single wireless network, and every non-battery-powered device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths. Built-in Dynamic Frequency Allocation continuously monitors RF conditions, automatically selecting the clearest channel to prevent interference from neighboring networks, cordless phones, and microwaves.

Streamlined Installation

In addition to field replaceable buttons, the CLWI-SWEX features screw-clamp connectors for simplified wiring while reducing installation time and material costs. So slim, the CLWI-SWEX can be installed in square gang boxes making them the perfect choice for both new and retrofit projects.

Key Features

Field replaceable and engravable buttons

Available in anthracite or white finishes

infiNET EX® robust communication

Configurable up to 6 buttons

Screw-clamp connectors for easy installation

Real-time status feedback with a stylish bargraph LED array
