Crestron® Multi-Surface Mount Kit-Black Smooth

Model #: TSW-760/1060-MSMK-B-S

At a Glance

Crestron® Multi-Surface Mount Kit-Black Smooth for TSW-760 and TSW-1060 Touch Screens

WarningProposition 65 Warning for California Residents
Crestron® Multi-Surface Mount Kit-Black Smooth

General Specs

Depth (in.)2.2
Width (in.)6.08
Height (in.)4.62
CompatibilityTSW-760; TSW-1060
ColorBlack
Product Weight (lbs.)0.26

Crestron® Multi-Surface Mount Kit-Black Smooth

Model #: TSW-760/1060-MSMK-B-S
168401
Model #: TSW-760/1060-MSMK-B-S
Crestron
$99,999.00

Call for Best Price

At a Glance

Crestron® Multi-Surface Mount Kit-Black Smooth for TSW-760 and TSW-1060 Touch Screens

Get to know this product.

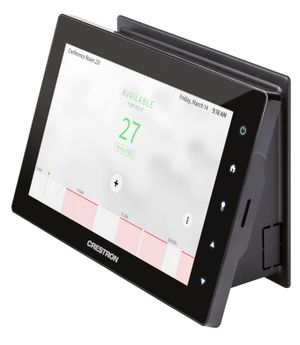

Allows a TSW-760 or TSW-1060 touch screen to be mounted to a glass wall or other smooth, flat surface. Can also be mounted over an electrical box. Ideal for mounting at the entrance to a meeting space for room scheduling applications. Provides a 20° upward tilt angle for ADA compliance.

The TSW-760/1060-MSMK Multi-Surface Mount Kit provides a versatile surface mounting solution for a TSW-760 or TSW-1060 Touch Screen. Using the Multi-Surface Mount Kit, the touch screen device can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. When installed, the touch screen is angled upwards at a 20° tilt to allow for mounting at an ADA approved height.Provisions are included for attaching securely to a flat, smooth surface without screws using the included peel-and-stick adhesive pad. To ensure a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which simply affixes to the opposing side of the glass behind the unit. Alternately, the unit can be mounted over an electrical box using the screws provided. Wiring may be run through the back of the unit, or through one of the raceway knockouts located on the bottom or either side of the unit.The kit comes complete with self-adhering plastic raceway for use on smooth surfaces to conceal wires running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion. The raceway is paintable and is composed of three 3 foot (0.91 m) sections plus an assortment of elbows and couplings.

Key Features

    Enables mounting a TSW-760 or TSW-1060 touch screen to virtually any flat, smooth surface

    Ideal for mounting at the entrance to a meeting space for room scheduling applications

    Provides a 20° upward tilt angle for ADA compliance

    Secure, screwless installation using peel-and-stick adhesive pad

    Perfect for mounting to a glass wall or partition

    Includes an assortment of raceway to conceal wiring

    Also allows attachment to a variety of electrical boxes

    Available in smooth white or black finish

*Multi-Surface Mount Kit only, touch screen sold separately.

Specifications

General Specs

Depth (in.)2.2
Width (in.)6.08
Height (in.)4.62
CompatibilityTSW-760; TSW-1060
ColorBlack
Product Weight (lbs.)0.26
