Crestron® Quad Video Input Card

At a Glance

Crestron® Quad Video Input Card for DM® switchers with modular plug-in input card slots

Proposition 65 Warning for California Residents

A complete video quad processor for any DigitalMedia™ Switcher with modular plug-in input card slots.

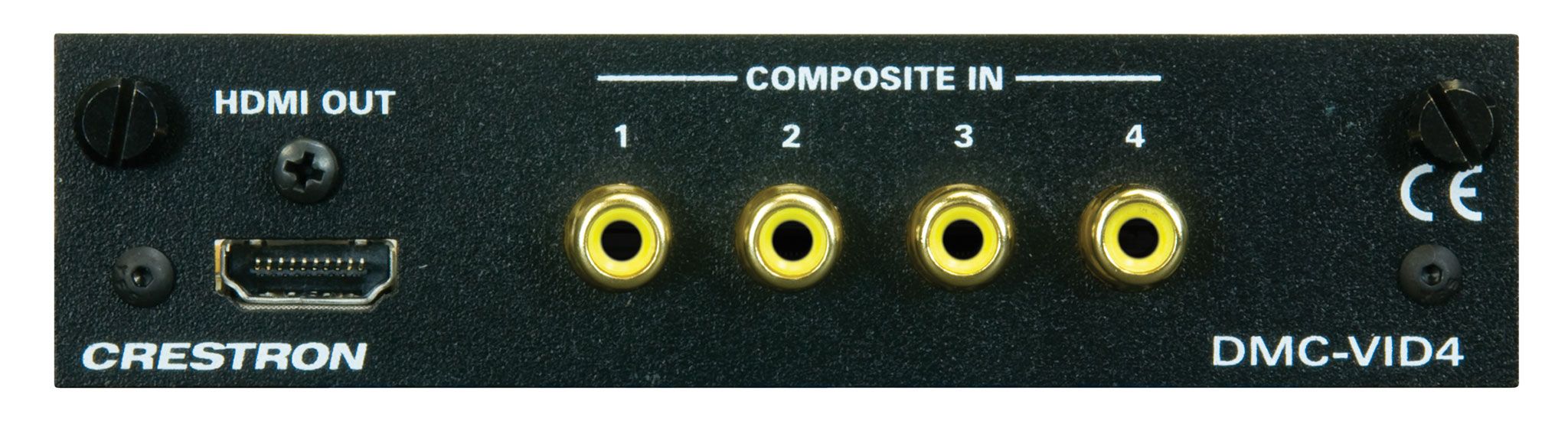

The DMC-VID4 is an input card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides four composite video inputs with built-in sequential switching and quad processing.

Sequential Switcher

The DMC-VID4 allows up to four cameras or other video sources to be connected and switched manually, or automatically in sequence at regular time intervals. In sequential switching mode, the video image cycles repeatedly through each available input, displaying one source at a time. The time interval for sequential switching is user-definable.

Video Quad Processor

In quad mode, the DMC-VID4 allows up to four cameras or other video sources to be viewed simultaneously in either dual or quad video windows.

Dynamic Text Overlay

Dynamic text overlay capability allows each video image to be labeled to clearly identify the source being displayed, whether in sequential switching or quad mode.

Local HDMI® Output

Every DM® switcher input card includes an HDMI output port, which can be used to pass the video input signals through to a local video monitor or to feed a second DM switcher for output expansion purposes. The HDMI output on the DMC-VID4 carries the switched or quad processed video signal.

Standalone Switcher/Quad Processor

In addition to its use as an input card for DM switchers, the DMC-VID4 may also be used with the DMCI DigitalMedia Card Interface to provide a simple, Crestron controllable video switcher and quad processor with HDMI output.

To configure a DM switcher complete with input and output cards, cables, and other peripherals, please use the online DigitalMedia Switcher Configuration Tool.

Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.

Key Features

Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher

Provides a quad window processor and sequential switcher for up to four composite video sources

Includes a local HDMI® output

Occupies a single DM® switcher input card slot

Provides a Crestron® controllable video switcher and quad processor using the optional DMCI card interface
