Crestron® Sonnex® Link over Fiber Extender

Model #: S-EXT1-S

At a Glance

Crestron® Sonnex® Link over Fiber Extender with protection against lightning surges and extension up to 2000 ft

WarningProposition 65 Warning for California Residents
Crestron® Sonnex® Link over Fiber Extender

General Specs

Product Weight (lbs.)0.63
Depth (in.)4.32
Width (in.)3.75
Height (in.)1.42

Crestron® Sonnex® Link over Fiber Extender

Model #: S-EXT1-S
163650
Crestron

Call for Best Price

At a Glance

Crestron® Sonnex® Link over Fiber Extender with protection against lightning surges and extension up to 2000 ft

Get to know this product.

Extends the Sonnex® Link and provides electrical isolation for long-distance and/or outdoor wire runs.

The Crestron® S-EXT1-S is an optional accessory for the Sonnex® Multiroom Audio System (SWAMP-24X8). It provides a solution for extending the Sonnex Link up to 2000 ft (610 m) over one multimode fiber strand[1]. It is ideal for any application that requires running the Sonnex Link between a main house and guest house, pool house, or other outbuilding, providing high-performance signal extension, plus optical isolation against lightning surges and other electrical disturbances.

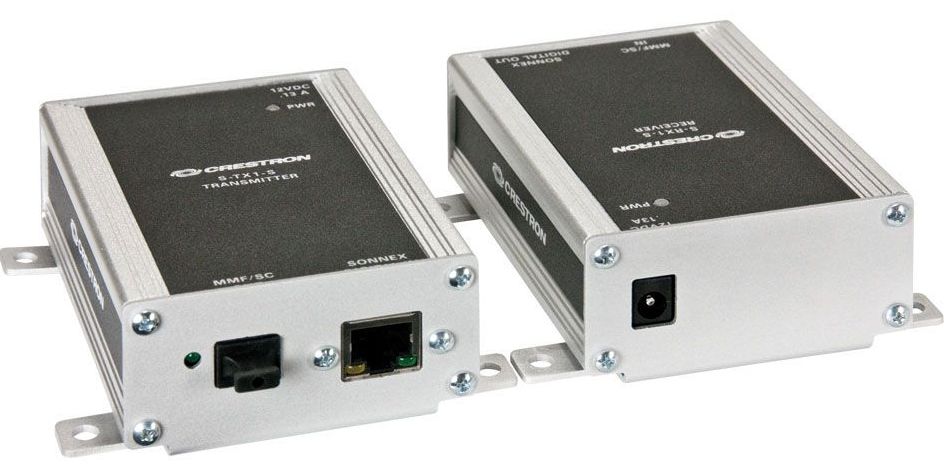

The S-EXT1-S is composed of one transmitter and one receiver (S-TX1-S and S-RX1-S, both included). Each component can be mounted discretely in the back of an equipment rack or to any suitable flat surface. Linking the two components requires just one run of Crestron CresFiber® 8G fiber optic cable[1]. Crestron offers a full line of rugged CresFiber cables and installation tools for a complete solution.

Key Features

    Extends the Sonnex® Link up to 2000 ft (610 m) over fiber

    Works reliably without any programming or configuration

    Transports 24 stereo channels of digital audio

    Also carries Sonnex control signals

    Protects against lightning surges for outdoor runs

Specifications

General Specs

Product Weight (lbs.)0.63
Depth (in.)4.32
Width (in.)3.75
Height (in.)1.42
