Crestron® Zūm™ J-Box Sensor Integration Module

At a Glance

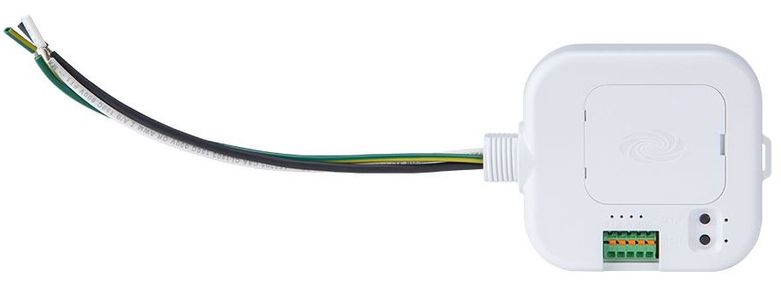

Crestron® Zūm™ J-Box Sensor Integration Module with external terminal block low-voltage sensor connections

Proposition 65 Warning for California Residents

The Zūm™ J-Box Sensor Integration Module (ZUMMESH-JBOX-SIM) enables the use of hard-wired occupancy and daylight sensors with a Zūm commercial lighting system. It is ideal for applications that may not be conducive to using battery-powered wireless sensors. It also enables the use of ultrasonic and dual-technology type sensors, as well as specialized sensors for hallway, high-bay, wet location, outdoor, and other applications.One or more motion-detecting sensors can be connected to a single ZUMMESH-JBOX-SIM and configured to operate in either occupancy or vacancy-only mode. A single open-loop daylight sensor, photosensor, or photocell can also be connected to support daylight harvesting. The ZUMMESH-JBOX-SIM appears as a native Zūm Mesh wireless device in the room, with all the same functionality and easy pair-and-play setup of a Zūm wireless occupancy, vacancy, or daylight sensor.The ZUMMESH-JBOX-SIM mounts directly to a 4-inch square junction box. It communicates wirelessly with one or more Zūm dimmers, switches, and load controllers, allowing lights to turn on and off automatically based on room occupancy and vacancy, and dim automatically according to the amount of natural daylight in the room. It can also serve as a host for a Zūm Network Bridge (ZUMMESH-NETBRIDGE) or Zūm Contact Closure Output (ZUMMESH-CCO).Please refer to the Zūm Lighting Control System Setup Guide (Doc # 7957) for additional information.

Key Features

Zūm™ wireless junction box-mounted sensor integration module

Enables hard-wired occupancy and daylight sensors to be used with a Zūm commercial lighting system

Supports occupancy or vacancy sensing plus daylighting

Compatible with Crestron GLS-ODT-C-NS and GLS-OIR-C-NS occupancy sensors

Compatible with the Crestron GLS-LOL open-loop daylight sensor

Compatible with STEINEL occupancy sensors and presence detectors

Pair and play wireless integration with Zūm dimmers, switches, and load controllers

Zūm Mesh peer-to-peer RF communications

Easy setup and calibration with the press of a button

Accommodates a Zūm Network Bridge or Zūm Contact Closure Output device

Knockout mount to a standard 4-inch square junction box

100-277 Volt AC line powered

External terminal block low-voltage sensor connections

Supplies 24 Volts DC to power the sensors

UL® 2043 listed for installation in an environmental air handling space
