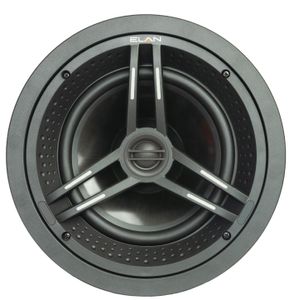

ELAN® 600 Series 8" In-Ceiling Speakers (Pair)


Model #:

EL-600-IC-8

Model #: EL-600-IC-8
397929
Elan
$501.00

At a Glance

Product Dimensions 10.8"h x 10.8"w x 4.4"d

A multipurpose speaker with step-up performance and a room-filling sound, the EL-600-IC-8 includes an upgraded injection molded Polypropylene cone woofer and pivoting 1" silk dome tweeter that's perfect for distributed audio or home theater.Read More

Available in Store Only
$501.00

Get to know this product.

Product Overview

Product Overview

Room Filling Sound

Low Crossover points and a woofer that's mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Silky Smooth Highs

Silk dome tweeters reduce the severity of break-up modes resulting in silky smooth sound which is pleasing to the ear - even at high volumes

Tilt Tweeter

The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Thin is In

A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge

We know you do it! Installing speakers above your head requires a sturdy grip point and the ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design

The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound

Secure Connection

All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty

Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Injection molded Polypropylene cone woofer

Pivoting 1" silk dome tweeter

Easy-Grip Tweeter Bridge

Useful Documents
Specifications

General Specs

Frequency Response49Hz-20kHz
Manufacturer WarrantyLimited Lifetime
Collection600 Series
RMS Power Handling (Watts)120
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)120
Number of Speakers2
Sensitivity90
Speaker TypeIn-Ceiling Speakers
Depth (in.)4.4
Height (in.)10.8
Width (in.)10.8
Woofer Size8"

General

Length13.5 (Inches)
Width13.1 (Inches)
Height13.2 (Inches)
Weight14 (Lbs)
Unit Of MeasurePair
Woofer Size8" / 200mm
Woofer ConstructionInjection Molded Polypropylene Cone
Tweeter1" / 25mm Pivoting Silk Dome
Frequency Response49Hz-20kHz
Impedance8 (Ohms)
Power Handling120 (Watts)
Sensitivity90 (dB)
TimbreTimbre-Matched to all 600 Series Speakers
Dimensions10.8" / 275mm Diameter x 4.4" / 111 mm Depth
Hole Cutout Dimensions9.75" / 248 mm Diameter
Mounting Depth4.25" / 108mm
