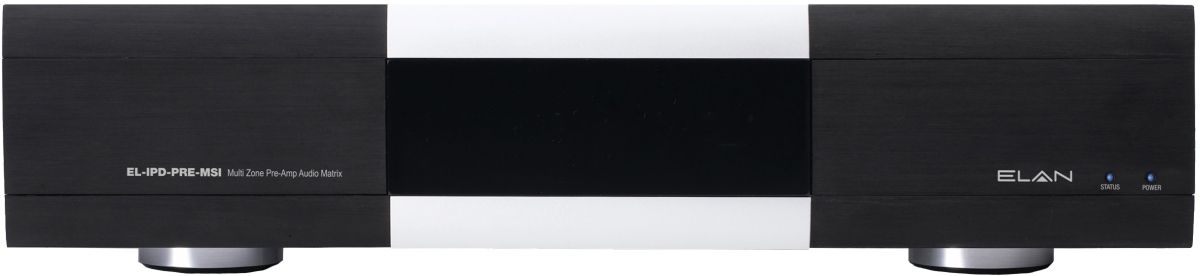

ELAN® Multi Zone Preamp Audio Matrix

Product Overview

In stand alone mode when paired with external amplifiers will support up to 22 input sources (6 digital, 16 mono / 8 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an ELAN System Controller). Each RCA analog input can be configured as left, right or as mono. 12 line level outputs can be configured as 12 mono or 6 stereo output zones or as subwoofer out. Each can be configured as left, right, mono, or sub out.

Adding the optional Dante™ Networking card connects sources to other Dante™ enabled ELAN IP amplfiers using existing networks.

ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.

6 Stereo or 12 Mono Pre-amp Zones

Adds ELAN Zone Control to Any Amplifier

With the Optional Network Audio Card, add Dante™ audio networking

3 Optical, 3 Co-ax, and 8 Stereo / 16 Mono Analog Inputs

DSP with 5-Band EQ for Each Zone

Lip Sync Correction
