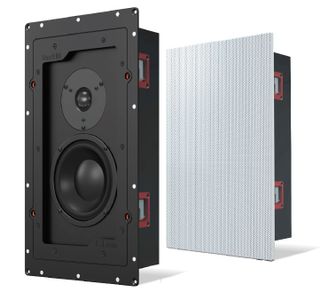

Leon® Vault Series 4" Ultra-Thin In-Wall Speaker

Model #: v44UX

$1,200.00

At a Glance

Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The Vault v44 speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.

WarningProposition 65 Warning for California Residents
Leon® Vault Series 4" Ultra-Thin In-Wall Speaker

Connections

Connector TypeSpring-Loaded Terminals

Construction

Enclosure TypeSealed
Tweeter CompositionSilk Dome

Specifications

Speaker Output Power1046 dB
Sensitivity88dB @ 2.83V/1m
Speaker TypeIn-Wall Speaker

General Specs

Product Weight (lbs.)15
Color Finish NameWhite
RMS Power Handling (Watts)125
ColorWhite
Impedance6 ohms
Maximum Power Handling (Watts)125W
Speaker TypeIn-Wall Speakers
Depth (in.)4
Height (in.)13.25
Width (in.)8
Woofer Size4"

Leon® Vault Series 4" Ultra-Thin In-Wall Speaker

Model #: v44UX
137388
Model #: v44UX
Leon
$1,200.00

Available in Store Only

$1,200.00

At a Glance

Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The Vault v44 speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.

Get to know this product.

Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The Vault v44 speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.

    Fully sealed and tuned enclosure constructed from 3/4″ MDF

    Timbre-matched to our Horizon Hz44 and Profile Pr44 Series speakers

    At only 3.75” deep, they fit easily into any standard wall

    Thin framed, removable magnetic grills can be custom painted in-house to match any color swatch or paint code

    Re-engineered mounting system for easy installation

    Recommended Pairings: Hz44, Pr44, A10-UT

Specifications

    Material: Sealed MDF enclosure

    Finish: Paintable grills (custom factory finish available)

    Grill: Perforated metal

    Connections: 5-way binding post

    Components: 4″ ultra-thin woofers; 1″ silk-dome tweeters

    Impedance: 6Ω

    Recommended Power: 25-125W

    Max. Output: 100dB avg, 104dB peak

    Coverage: Vert: 110°, Hor: 140°

    Frequency Response: 110–20kHz (+/- 3dB)

    Sensitivity: 88dB @ 2.83V/1m

    Mounting: Swing out “dog-leg” system

Dimensions

    Outer Dimensions: 8” W x 13.25” H

    Cutout: 6.5” W x 11” H

    Depth: 3.75”; 4” (with grill)

Useful Documents
Specifications

General Specs

Product Weight (lbs.)15
Color Finish NameWhite
RMS Power Handling (Watts)125
ColorWhite
Impedance6 ohms
Maximum Power Handling (Watts)125W
Speaker TypeIn-Wall Speakers
Depth (in.)4
Height (in.)13.25
Width (in.)8
Woofer Size4"

Connections

Connector Type:Spring-Loaded Terminals

Construction

Enclosure Type:Sealed
Tweeter Composition:Silk Dome

Specifications

Speaker Output Power:1046 dB
Sensitivity:88dB @ 2.83V/1m
Speaker Type:In-Wall Speaker
